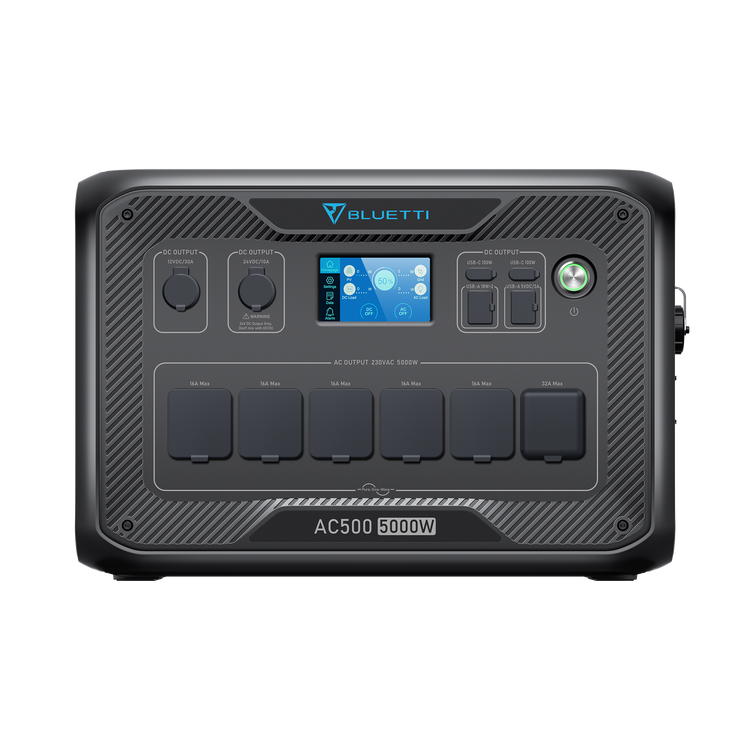

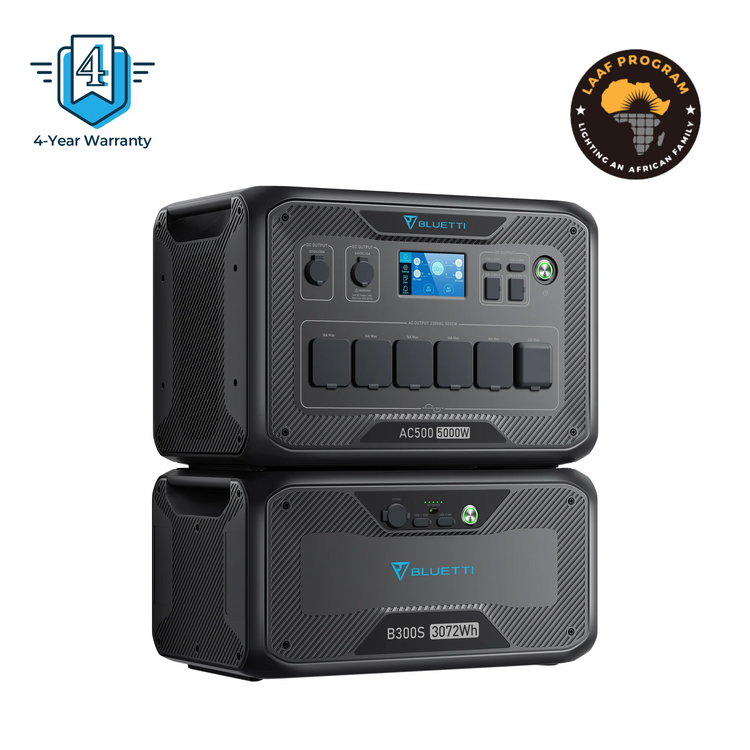

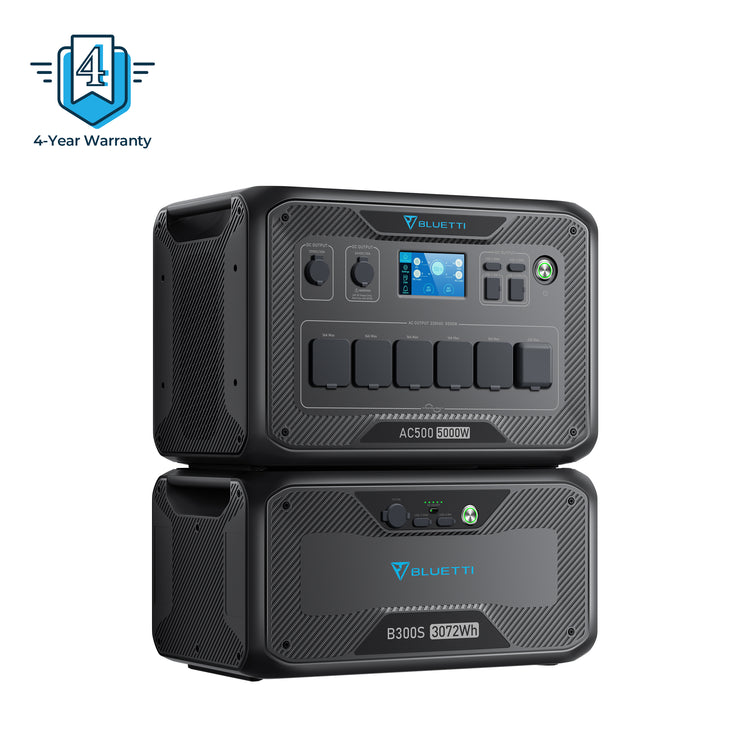

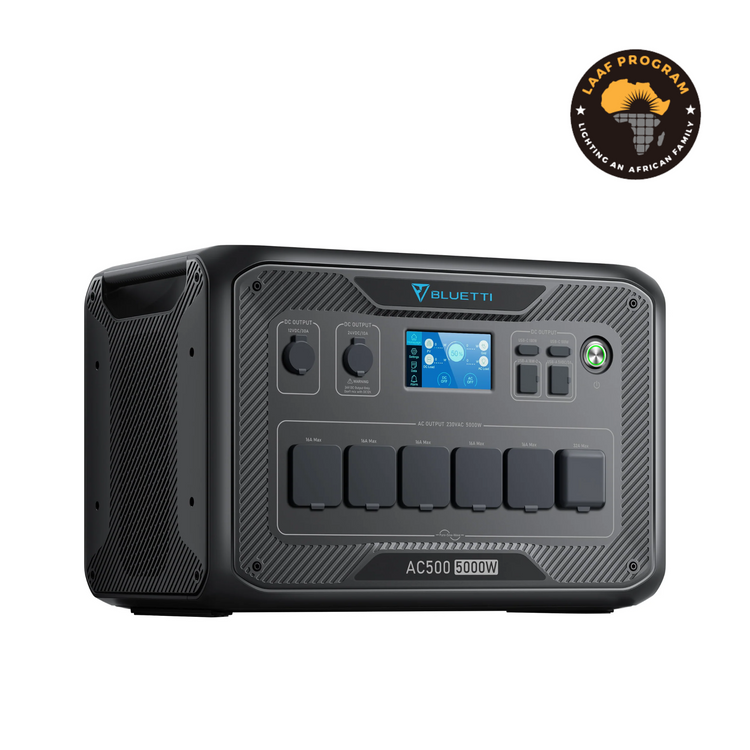

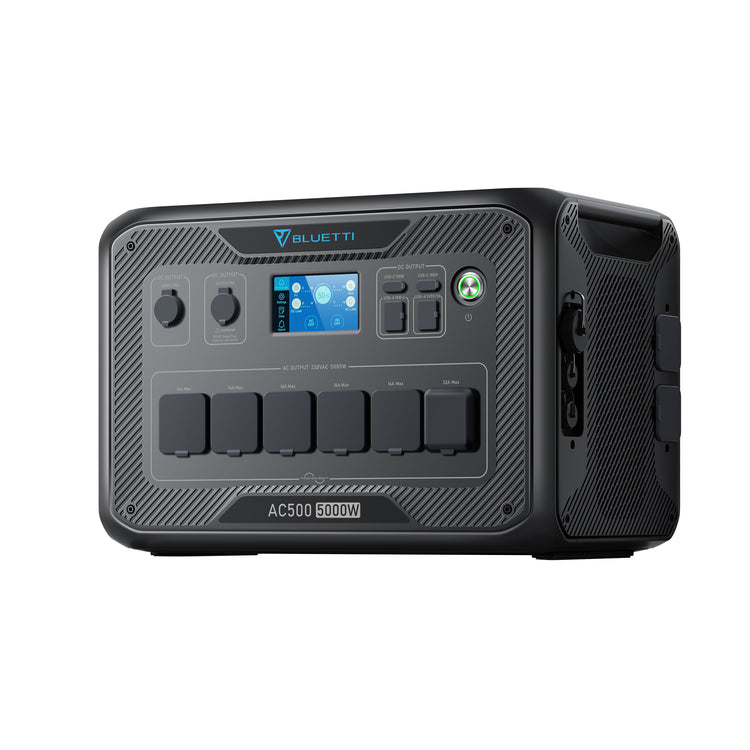

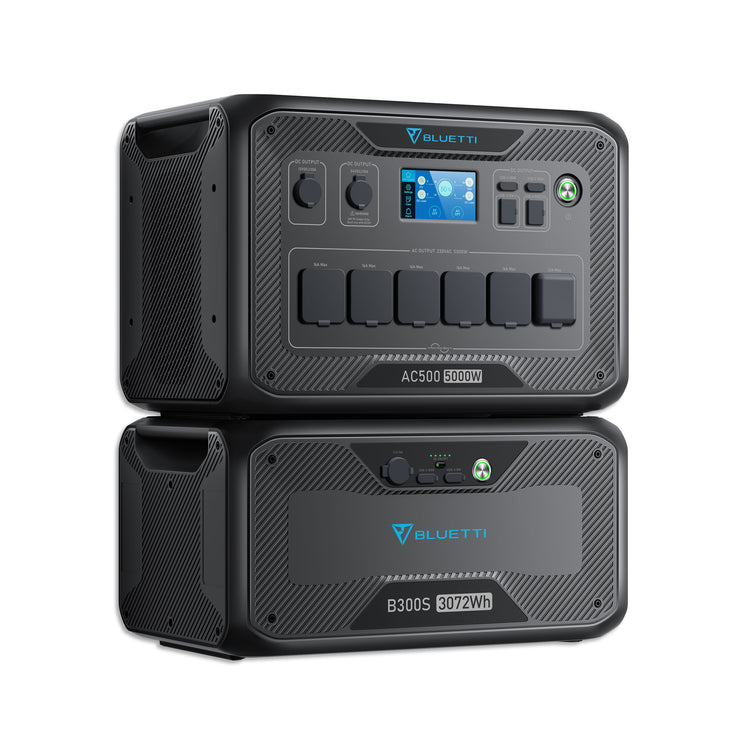

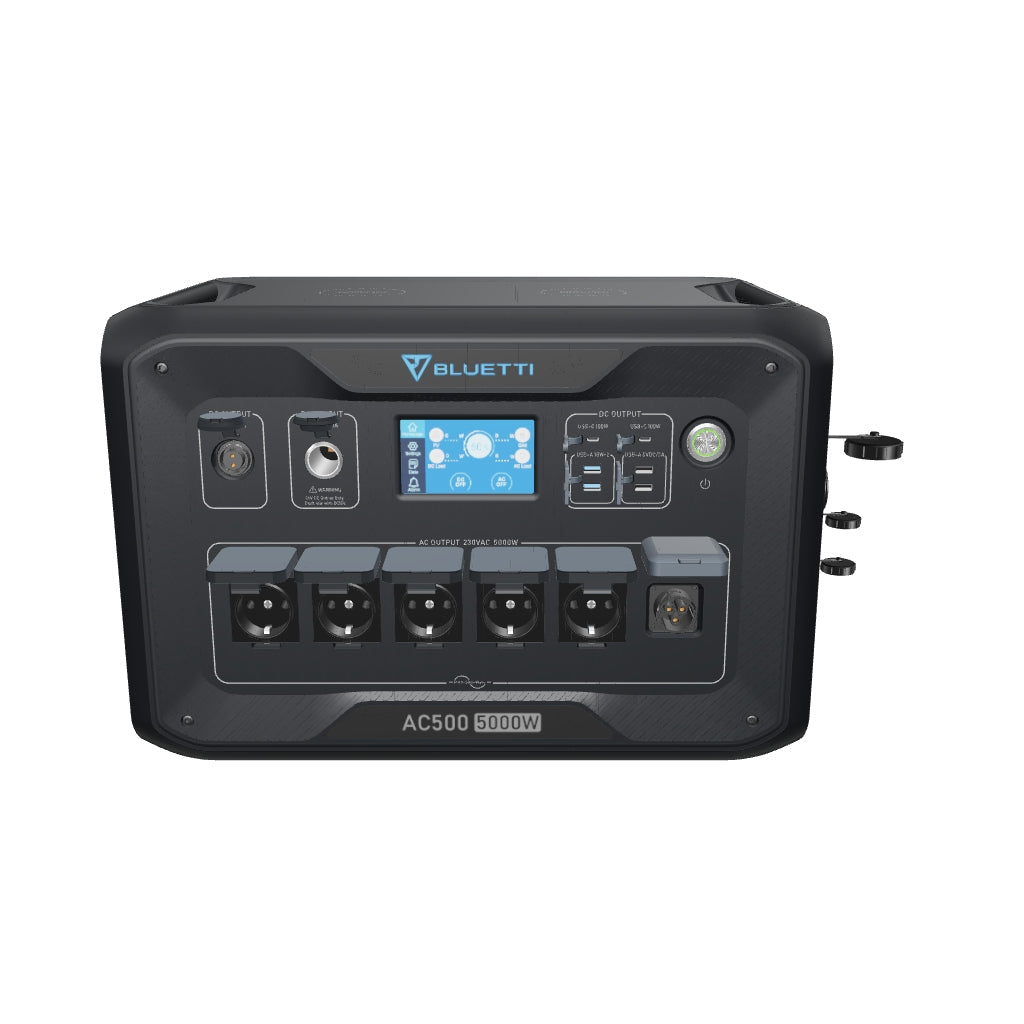

BLUETTI AC500 + B300S Home Battery Backup

Name: BLUETTI AC500 + B300S Home Battery Backup
Brand: Bluettipower-EU
SKU: AC500-EU-GY-BL-SPFEU
Price: 2300.0 EUR
Availability: InStock

2.300,00 €

2.300,00 € ~~2.800,00 €~~ On sale

Tax included.

Tech Specs

5.000W Rated Power (10.000W Surge)
3.072Wh~18.432Wh Expandable Capacity
LiFePO₄ Battery With 3.500+ Life Cycles to 80%
Smart App Control (WiFi & Bluetooth Connection)
6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid battery/Dual AC/ AC+ Solar)
16 Versatile Outlets for 99% Devices
Tie to Home Grid for 24/7 UPS
4 Years Worry-Free Warranty
Learn More About AC500+B300S >>

You can earn BLUETTI BUCKS (Value about €) for completing your purchase！

Product Model:

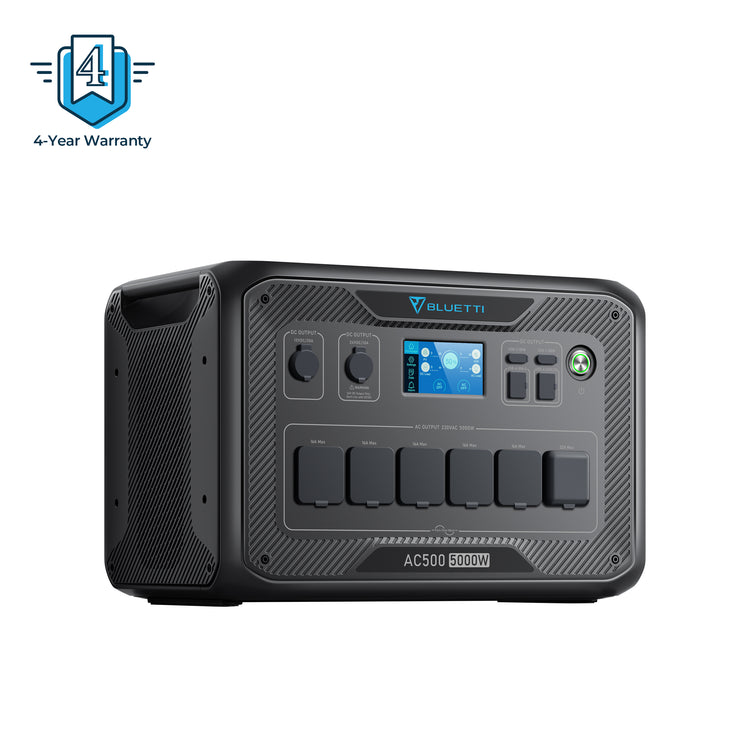

AC500 Inverter

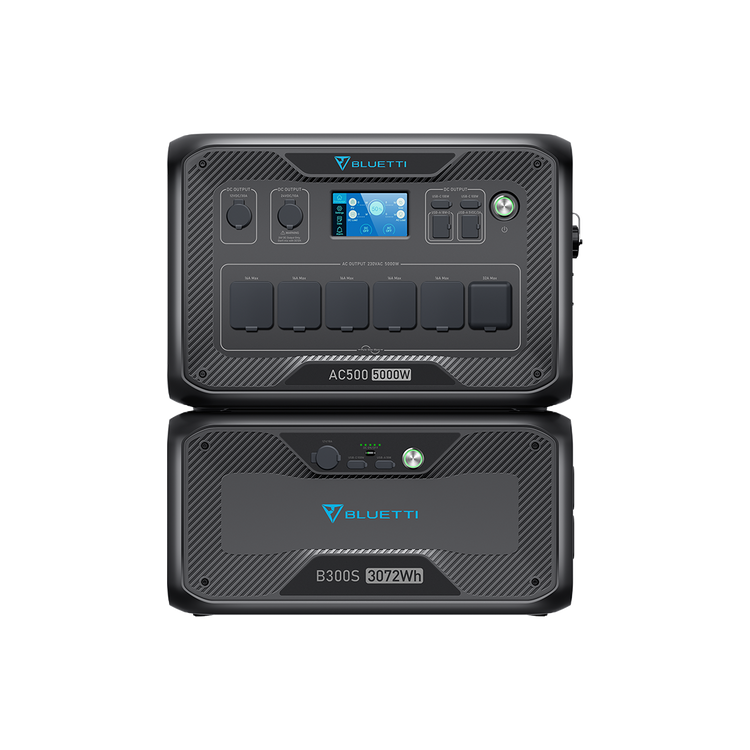

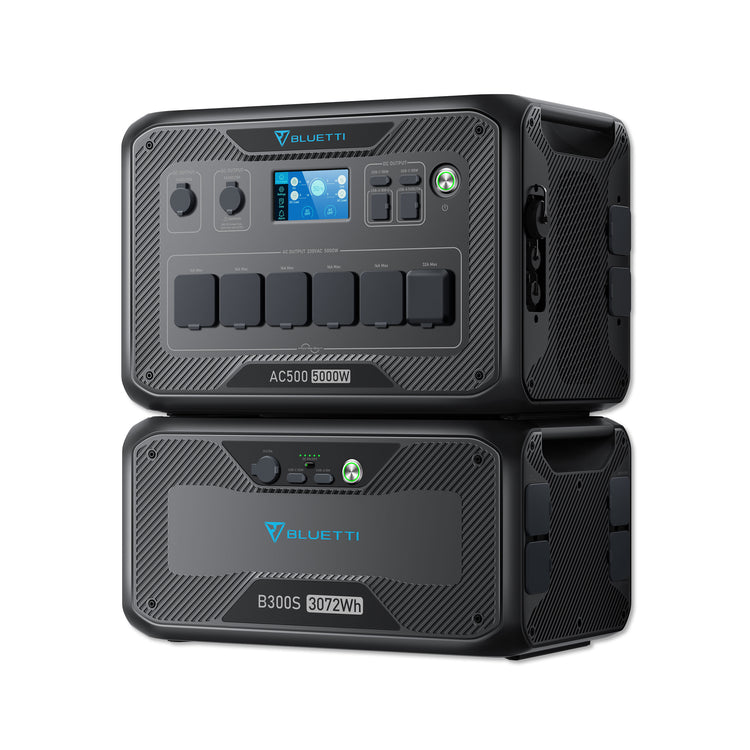

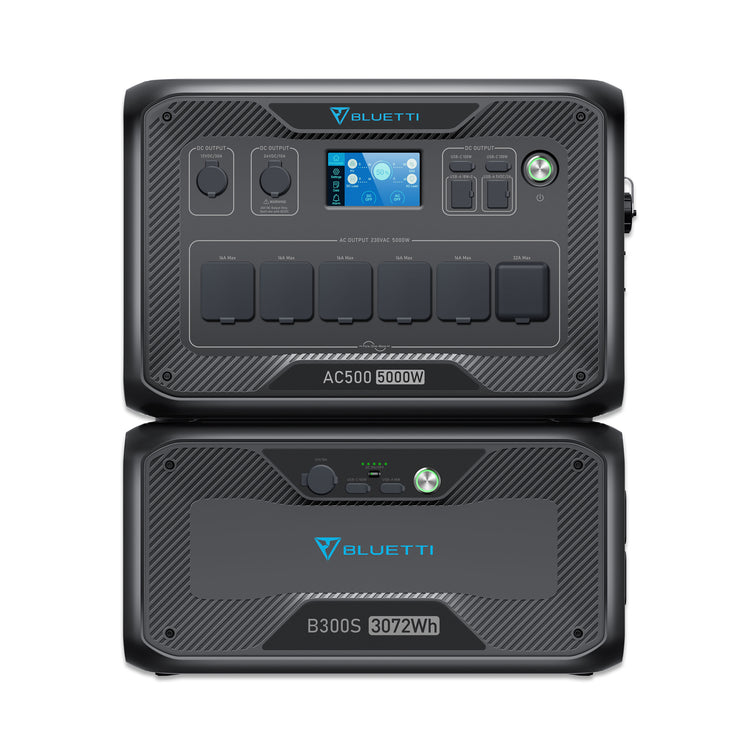

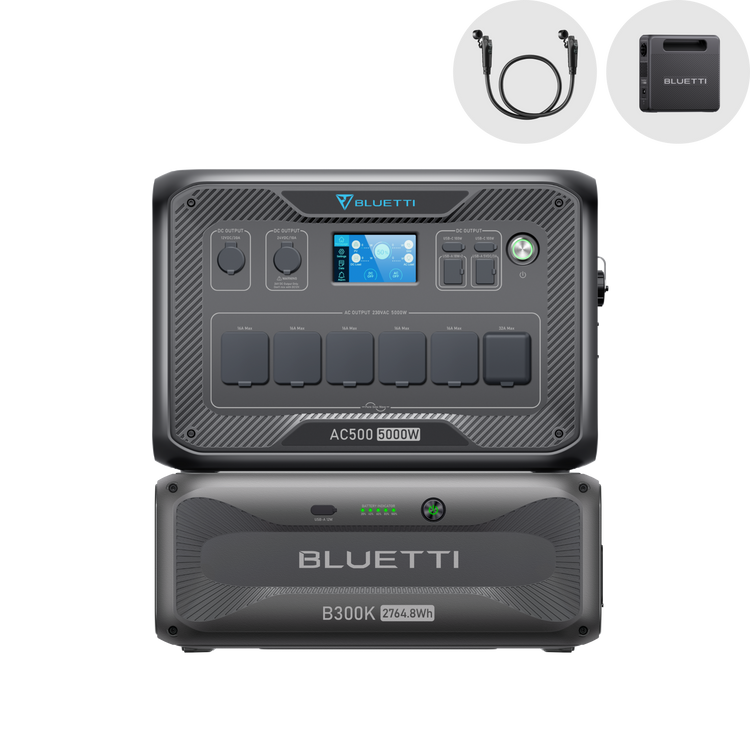

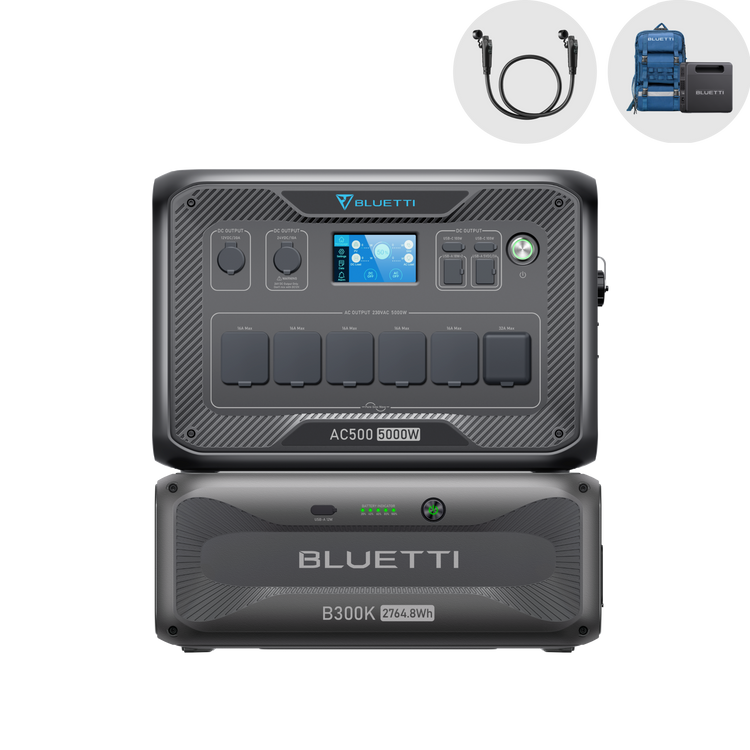

AC500+B300S | 5000W 3072Wh Power Kit

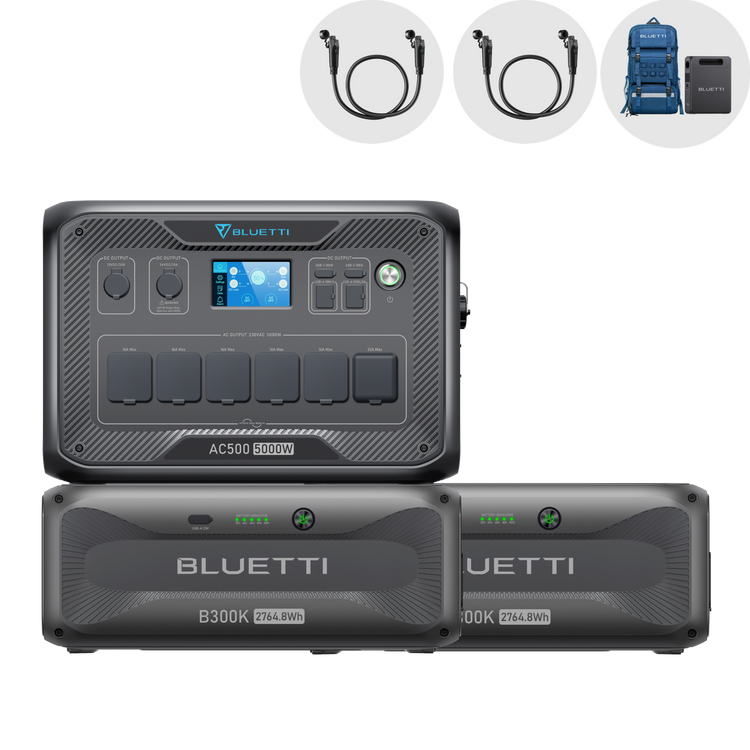

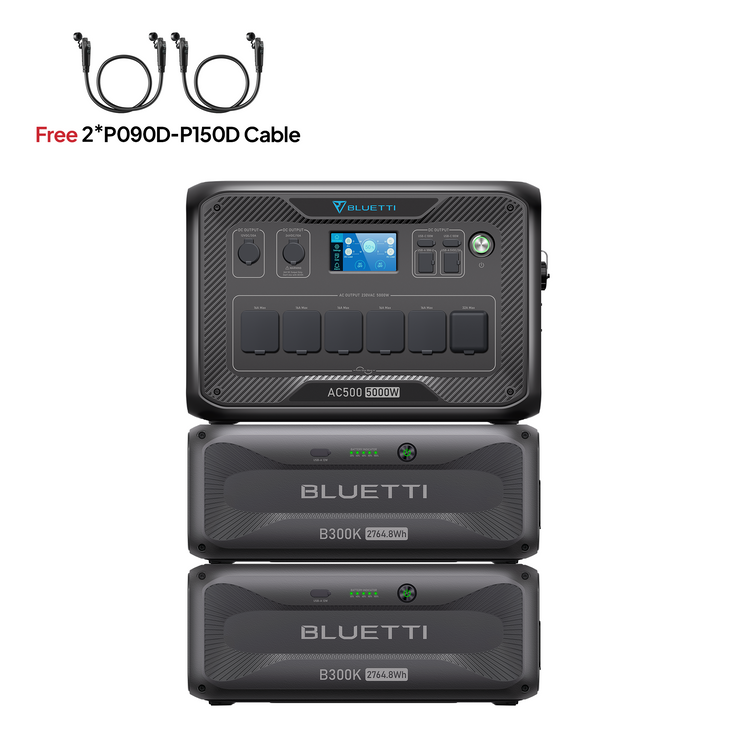

AC500+2*B300S | 5000W 6144Wh Power Kit

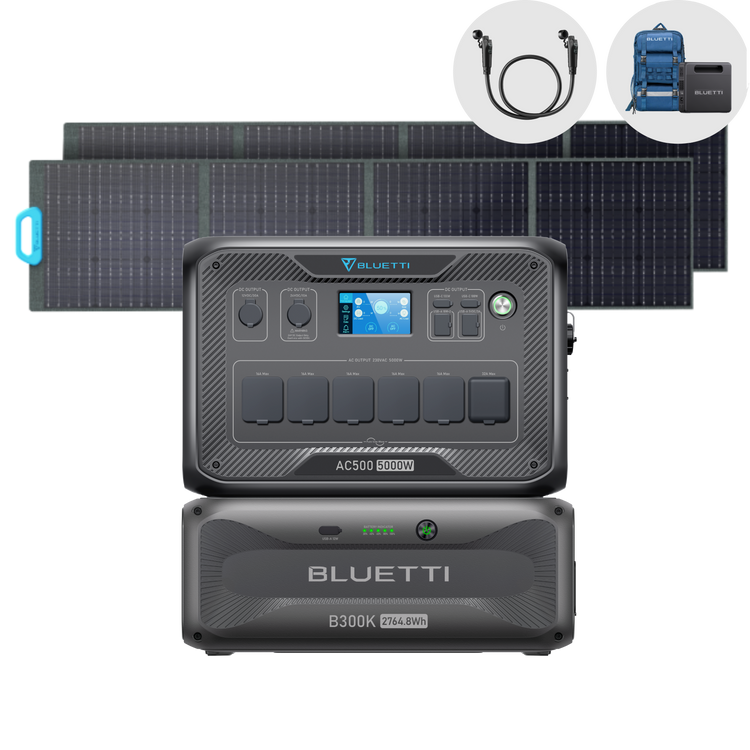

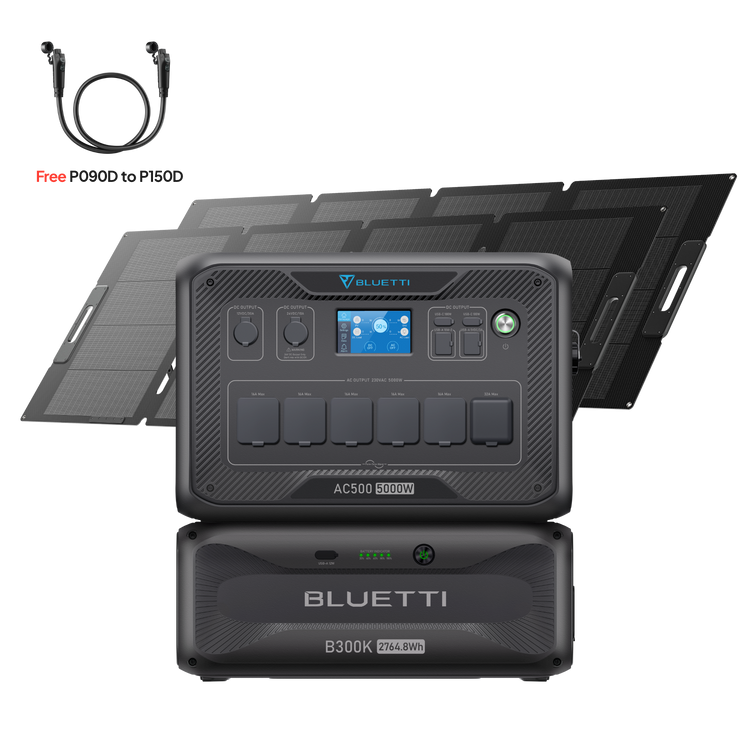

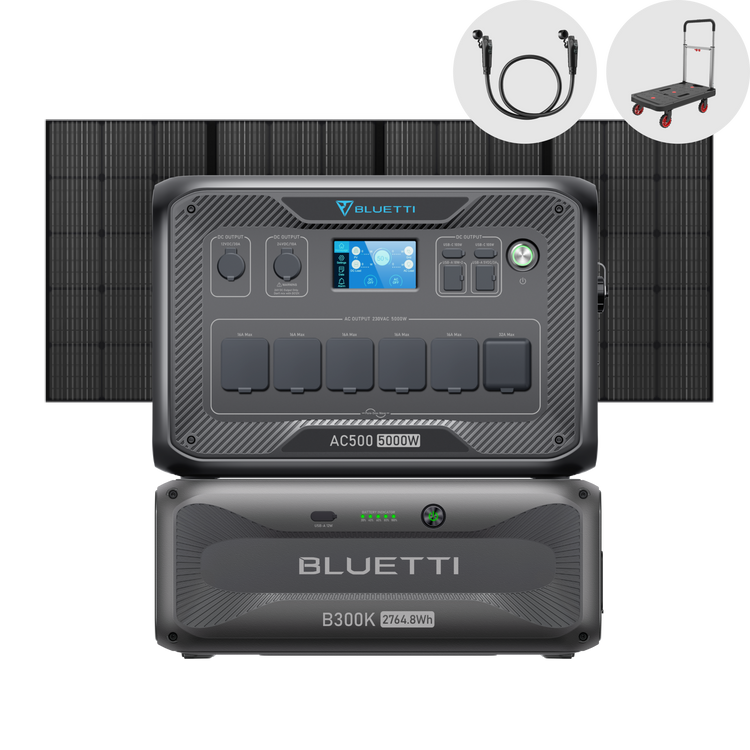

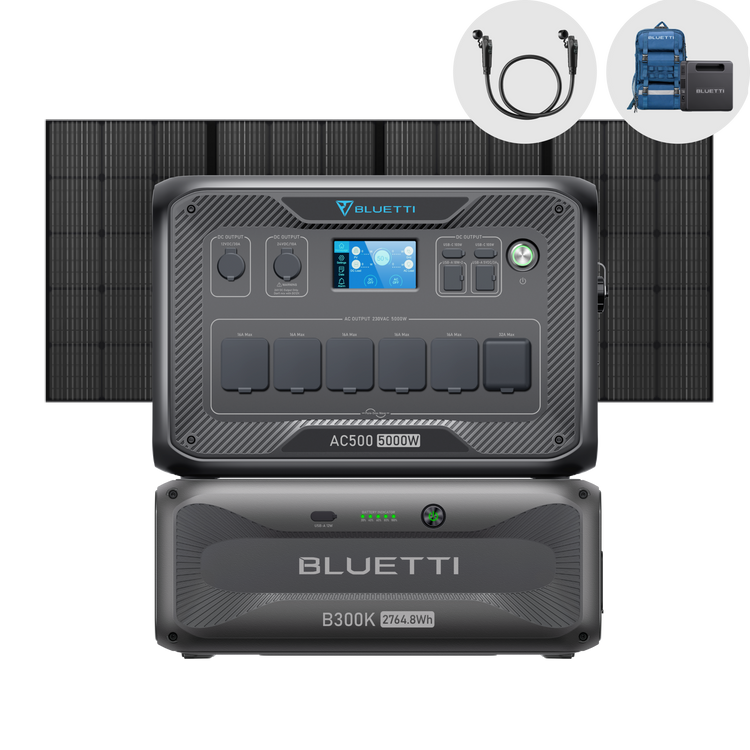

AC500+B300S+PV350 | 5000W 3072Wh 350W Solar Kit

Variants:

Quantity:

30 Days Price Match Guarantee

BLUETTI guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Free
Local Shipping

4-year Hassle Free
Warranty

Lifetime Customer
Support

Everything You Want, All in One

AC500 & B300S, the expandable power system, will definitely shift the way you harness the solar energy. It's designed to help you go through power outages and stay connected to unlimited energy wherever you are heading.

Power Option for Personalization

Thanks to the modular design, AC500 welcomes up to 6×B300S or 4× B300 (or a combination of B300 and B300S) expansion batteries for an overall capacity of 18.432Wh and 12.288Wh, respectively, covering your off-grid power needs for DAYS!

Luckily, AC300 owners who are looking for a more powerful inverter don't have to order a new bundle because the 5.000W inverter within AC500 can fulfill their demand without a doubt.

Powerful, Wonderful

The built-in inverter delivers 5.000W continuous pure sine wave output and takes up to 10kW surge for a short time at peak power, ensuring anything you plug in will run to its full functionality and potential effortlessly. It is suitable for all scenarios even when camping or having a barbecue in the yard.

Endless Solar Energy for Free

Supported by an efficient MPPT controller, AC500 allows up to 3.000W solar input - 40% faster than a standard charging speed, so fully charging an AC500+B300S combo only takes about 1,5hrs*.

*The charging time is calculated under ideal conditions and for reference ONLY. The specific charging time may vary due to ambient temperature and other factors.

Unparalleled Recharging Experience

AC500 system is designed to recharge in any way you like, such as directly connecting to the solar panels, car cigarette lighter, or more efficiently via a 5.000W charging cable*. What's even more exciting is that the AC500 can support up to 8.000W* whopping input rate, making it fully recharge in 15hrs.

* Require a 50A charging cable or tie to the grid.
* Require at least two B300S packs and dual charge via 3.000W solar and 5.000W AC. Or the input rate would be limited to 4.500W with only one B300.

Safe, Smart, And Seamless UPS Backup

Whenever the grid goes down, the AC500 system will automatically become your home energy source to keep all your essential loads running without interruption. It also adopts an advanced Battery Management System (BMS) and LiFePO4 battery to ensure higher security during operation, longer life cycles, and optimal performance.

Monitor & ControlIn The Palm of Your Hand

The intuitive BLUETTI App and touchscreen allows you to take everything under control, including power in/out, real-time power consumption, charging profiles, OTA firmware update, and more.

Never Run Out of Power

AC500 powers your devices like a gas generator, but without any fuel costs, noise, and pollution,
making it safe enough to use next to you whether you're at home, pitching a tent, or trying an RV road trip.

Camping with lots of electronic gear.
Camping with lots of electronic gear.

Other Top Rated Products

Specifications

Battery Info

Capacity:

Works with B300s or B300, starts at 3.072Wh

OUTPUT

AC Outlets:

5 x 230V/16A
1 x 230V/32A
5.000W In Total

Inverter Type:

Pure Sine Wave

Surge Power:

10.000W

USB-C Port:

2 x 100W Max.

USB-A Port:

2 x 5V/3A USB-A
2 x 18W USB-A

DC Outlets:

1 x 12V/30A (RV Outlet)
1 x 24V (Car Outlet)
*All regulated.

Wireless Charging Pad:

2 x 15W Max. (For Each)

INPUT

AC Charging Cable Input:

4.500W Max. (W/ 1*B300S), 5.000W Max. (W/ 2 or more B300S).

Solar Input:

3.000W Max., VOC 12-150VDC, 15A

Car Input:

12/24V from Vehicle Cigarette Lighter Port

Maximum Input:

4.500W (W/ 1*B300S), 8.000W (W/ 2 or more B300S) with AC and Solar Input Simultaneously

GENERAL

App Control:

Yes, Wifi&Bluetooth

Scalability:

Expandable W/Up to 6 x B300S Or 4×B300

Simultaneous Recharge & Discharge:

Yes

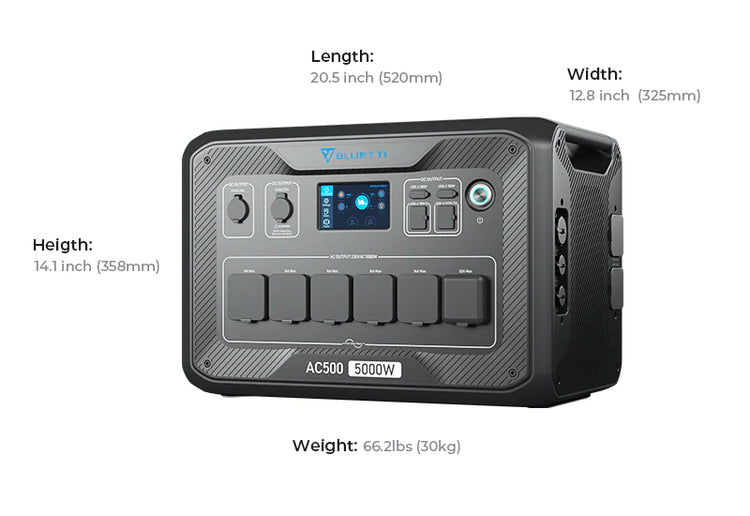

Weight:

66,2lbs (30kg))

Dimensions (LxWxD):

20,5 x 12,8 x 14,1in ( 52 x 32,5 x 35,8cm)

Operating Temperature:

-4-104℉ (-20-40℃)

Storage Temperature:

-4-104℉ (-20-40℃)

Certification:

UL2743, UKCA, TELEC, RCM, FCC ID, CE

Warranty:

48 Months

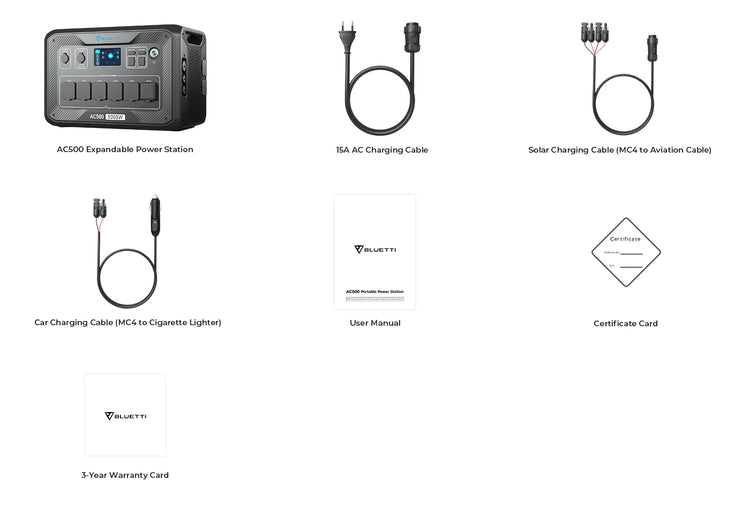

In The Box

BLUETTI AC500 + B300S Home Battery Backup MANUAL

Download Now

How to Build a Partial Home Backup System(EU Standard)

Download Now

AC300 wasn't powerful enough to supply our laundry room, so AC500 brought a nice addition to our autonomous laundry room (2-2.4kW) & water boiler (3kW). We can operate the washing machine AND the drier (or boiler) at the same time, without overloading the unit. Our boiler starts at 3.3kW so it would overload AC300. We also enjoy the extra solar input of this unit.
Careful, it's a bit heavier than AC300. We love both units, but benefit most from this one.

Only downside is the lack of support for B300.
Actually, there is support via a P150D to 90D wire, but it's expensive, and every time we connect a B300 to the AC500 using that wire (direct connection, or via another B300S), we get a beeping sound and a "BMS error" message, which doesn't prevent using the battery. We just need to turn it on manually every morning.

happy with the purchase

thanks for the great advice and help in choosing the right Fate model, glad to cooperate. Fate answered all my questions and helped me with payments. thanks, I'm very grateful! I will definitely buy more batteries of additional power and a solar battery! power is often cut off in Ukraine, so we really need bluetti now and help us out

BLUETTI AC500 + B300S Home Battery Backup

FAQS

Q1: What is the output power of AC500?
A:
1. 4.500W max. with 1*B300S
2. 5.000W max. with 2*B300S or more
3. 3.000W max. with 1*B300
4. 5.000W max. with 2*B300 or more.
Q2: How many B300 packs can be connected to AC500？
A: 4*B300
Q3: How many B300S packs can be connected to AC500？
A: 6*B300S
Q4: Can B300S and B300 be mixed?
A: Yes. 4 packs in total.
Q5: Can I use AC500 alone?
A: No, it's 100% modular and needs to team with B300S/B300 to get its job done.
Q6: What is the max charging power of AC500?
A:
1. 3.000W max. with 1*B300
2. 5.000W max. with 2*B300 or more
3. 4.500W max. with 1*B300S (PV+AC)
4. 8.000W max. with 2*B300S or more (PV+AC)
Q7: Can I use other brands' batteries?
A: No, AC500 is compatible with B300S or B300 ONLY.
Q8: What is the power consumption of AC500 when it's off/on?
A:
1. 11W when AC500 is on, DC and AC are off;
2. 30W when AC and DC are on.
Q9: Do I need an extra cable to connect B300 and AC500?
A: Yes, P150D to P090D is required, you may order it separately in BLUETTI Store.
Q10: What is the difference between B300S and B300?
A:
1) Current capacity: 130A for B300S while 75A for B300.
2) ONLY B300S features the automatic heating function.
3) Solar input: 500W for B300S while 200W for B300.
Q11: How does the heating function work?
A: When the temperature is below 0℃, the battery will be automatically heated once AC or PV charging is activated (input power＞400W).
Q12: How to connect AC500 to the main panel ?
A:
Low Voltage Area: Match the transfer switch and smart home panel to the main panel.
High Voltage Area: Match the transfer switch to the main power box.
Q13: What is the switching time of the UPS?
A: 20ms.
Q14: Can I use third party solar panels to charge AC500?
A: Yes, the solar panels must meet the following conditions:
1) Total voltage:12-150V
2) Total power: 3.000W max.
3) With MC4 connectors
Q15: Can I use rooftop solar panel to charge AC500?
A: Yes, but please note that your solar roof must meet:
1. No micro-inverter
2. Open circuit voltage 12-150V
3. With MC4 connectors
Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage to achieve solar charging.
Q16: Does AC500 support charging and discharging at the same time?
A: Yes.
Q17: How long will AC500 run my device?
A: Running time = battery capacity x DoD x η ÷ device rated power DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η are 90%.
If you run a 1.000W microwave oven with a AC500 + B300S combo, the running time will be 3.072Wh × 90% × 90% ÷ 1.000W ≈ 2,5 hours
Note:
1) This formula doesn't apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.
Q18 : Is AC500 waterproof?
A: No, please keep it in a dry place.
Q19: Can I use the fusion box in high voltage areas?
A: No.
