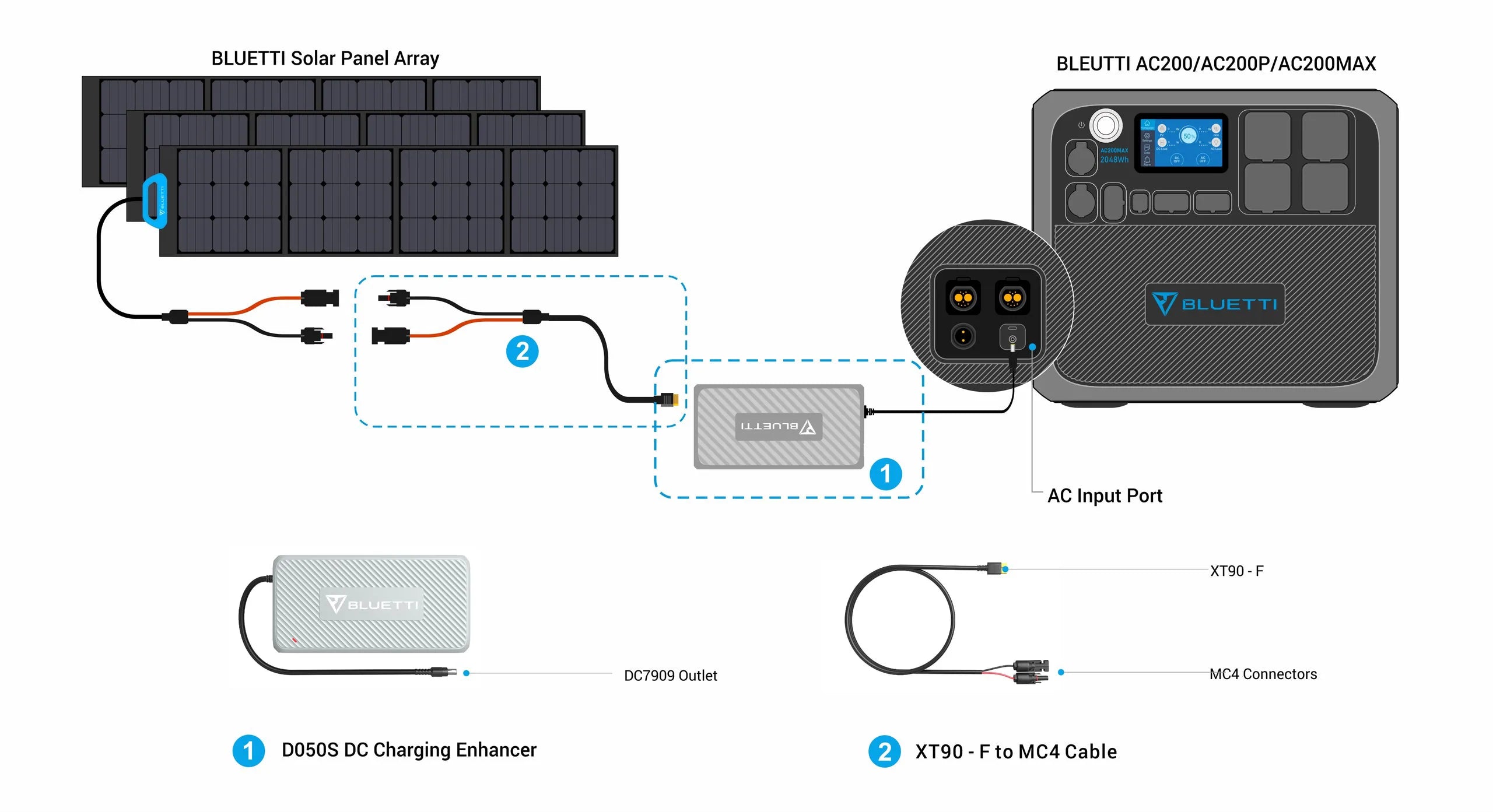

DC CHARGING ENHANCER (D050S)
1-year Hassle Free
ENABLE MORE CHARGING METHOD
Other Top Rated Products
1 x 12V/10A (Car Outlet)
2 x 12V/3A (5.5mm Outlet)
In The Box
Poweroak AC200P KonformitätserklärungDownload Now
AC200P Product Manual- English VS Germen VersionDownload Now
DC CHARGING ENHANCER (D050S)
Sehr nützliches Zusatzgerät. Wer noch schneller Solarstrom tanken will der braucht diesen Ladeverstärker.
EUN SUPER DISPOSITIVO FUNZIONA MOLTO BENE CONSEGNA RAPIDA GRAZIE
Very useful charger especially when sky is cloudy.
Q1: How can l connect AC200P with B230 or B300 expansion battery?
You can connect 1 B230 or B300 battery pack with AC200P via the P090D to XT90 cable*.
* Sold separately
Q2: What will be the noisy level?
It has smart fan start-up mode.
fans turn on/off based on the internal temperature and the loads. → load < 1500W, Max.45dB; load>1500W,Max.54dB
Q3: What is the length of the MC4 cable ?
There will be a 1.7m MC4 to Aviator cable comes with the AC200P, and the original cable with the solar panel is 3 meters long.
Q4: Can you charge and discharge this simultaneously and under what input and output loads?
Sure. However, in order to better protect the cycle life of the battery, it is not recommended to charge and discharge the battery at the same time.
Q5: How long will it take to fully charge by car charging?
18 hours under 12V, 9 hours under 24V.
Q6: How much capacity does AC200P have after 3500+ cycles?
AC200P can maintain above 80% capacity after 3500+ cycles
Q7: How long will the Bluetti run my device?
Battery Capacity × DOD × η ÷ (load W) = charging time(unit：h) Note: DOD is the battery discharge depth, η is the local inverter efficiency. For AC200P, both DoD and η are 90%.
If you run a 1,000W microwave oven with it, the running time will be: 2,000Wh × 90% × 90% ÷ 1,000W ≈ 1.6hrs
Note: 1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.
Q8: How do l know whether my appliance can work well with the AC200P?
Calculate the total wattage of your devices. AC200P should work if the load doesn't exceed its rated 2,000W.
Q9: How can the AC200P save more power?
The user can customize the ECO mode, and choose to turn on and off. Choose eco low power load or no load or forget to shut down, then AC200 will automatically shut down in 4 hours to save power.
Q10: What is the material of the case?
Uses PC+ABS 94V0 flame retardant material and aluminum outsourcing TPU for the handle part.
Q11: ls it possible to replace the built-in battery?
No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.
Q12: What is the difference between the AC200MAX and AC200P?
The main differences are:
1. Output power and capacity: 2000W AC power and 2048Wh capacity for AC200MAX, while 2000W and 2000Wh for AC200P.
2. Max. Input: 1400W for AC200MAX, while 1200W for AC200P.
3. Output Port: AC200MAX has a 12V/30A NEMA TT-30 port.
4. App Control: AC200MAX supports BLUETTI App control.
A useful guide to making the most of it all.
