BLUETTI B230 Expansion Battery | 2048Wh

1.399,00 €
1.399,00 € 1.499,00 € On sale

B230 is estimated to ship in Jan. 2023

  • B230 equipped with 2048Wh capacity.
  • One 100W USB-C, a 12V/10A car output and a USB-A ports.
  • Versatile power inputs allow you to recharge no matter where you are.
  • Solar charging, car charging and lead-acid battery charging need to be realized through D050S

SKU:


Free
Local Shipping

2+2 Years Hassle Free
Warranty

Lifetime Customer
Support

Never Run out of Power

BLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC, car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.

Versatile Power Source

The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.

Give Your Devices More Runtime

B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.

Home Backup and Trip Power Bank

The AC200MAX + B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

Specifications

BATTERY INFO


Capacity:
2,048Wh (51.2V,40Ah)

Type:
LiFePO4 (Lithium Iron Phosphate)

Life Cycles:
3,500+ Cycles to 80% Original Capacity

Shelf-life:
Recharge to 80% Every 3-6 Months

Management System:
MPPT Controller, BMS, etc.

OUTPORTS


USB-C Port:
1 x 100W Max.

USB-A Port:
1 x 18W USB-A

12V DC Outlets:
1 x 12V/10A (Car Outlet)

INPUT


AC Adapter Input:
500W Max.

Solar Input:
500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)

Car Input:
12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Lead-acid battery:
12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Max Input:
500W

RECHARGE TIMES


AC Adapter (500W):
≈6.5~7 Hours

Solar (200W):
≈15.5~16 Hours(With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W):
≈10 or 20 Hours

GENERAL


Compatibility:
AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)

Pass-through Charging:
Yes

Weight:
48lbs (21.8kg)

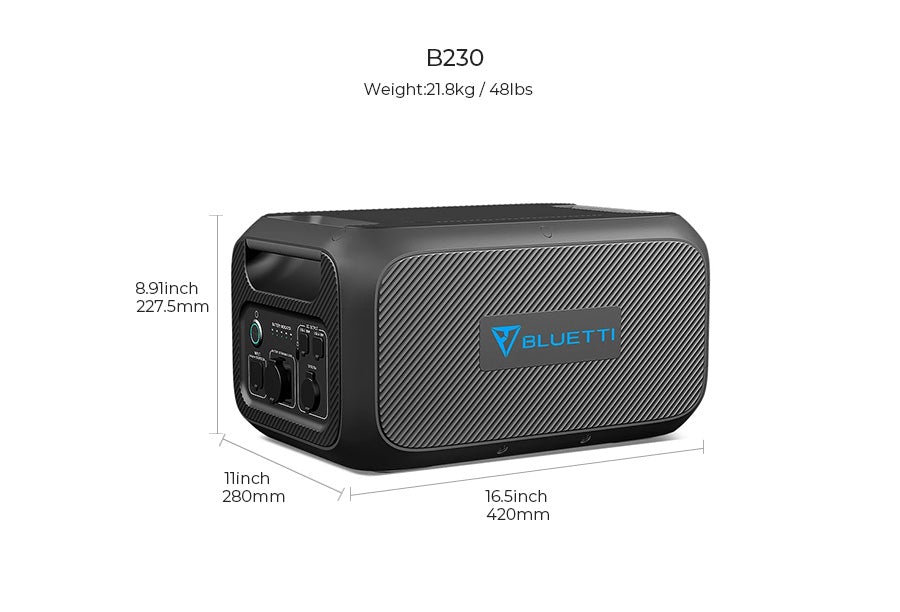

Dimensions (LxWxD):
16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)

Operating Temperature:
32°F-104°F (0-40°C)

Storage Temperature:
-4-104℉(-20-40℃)

Certifications:
UL, CEC, DOE, FCC, CA Prop 65

Warranty:
2+2 Years

In The Box

Download

BLUETTI B230 Expansion Battery | 2048Wh MANUAL

Download Now

Customer Reviews

Based on 6 reviews
67%
(4)
17%
(1)
17%
(1)
0%
(0)
0%
(0)
J
Jürgen Friebel
Ohne den DC-LADEVERSTÄRKER D050S noch kein Urteil über die B230

Da ich noch immer nicht den bestellten DC-LADEVERSTÄRKER D050S erhalten habe kann ich mir noch kein abschließendes Urteil über die B230 erlauben. Wenn ich den D050S erhalten habe hoffe ich das die B230 ihre Stärken voll ausreizt.

M
Michael Ilsøe Pedersen
Awesome Battery pack

Absolutly awesome Battery pack, double the Power for my AC200Max and can Power my dometic cfx cooler in the car as “stand alone”
Works great and the quality feel is very nice.

G
G.N.
Great Hardware

Perfectly plug&play with the AC200MAX, double the original KWH capacity for a modular and easy expansion. I bought also an external DC CHARGING ENHANCER (D050S) and plugged it to a separate PV solar array. Great stuff, and VERY EASY to activate and use.

E
Enrico Sørensen
Great expansion battery

Really nice extension to the ac200max. The only downsides is the bulky connection cable and the missing charger.

D
D.A.
Very satisfied

So far I am very satisfied with the product. It does what it was designed for. Thank you Bluetti!

FAQS

How-to

A useful guide to making the most of it all.

Product Application

How to connect B230 or B300 with AC200/P&EB200/P?

How to connect B230 or B300 with EB120/150/240?

How to connect B230 or B300 with AC200MAX?
